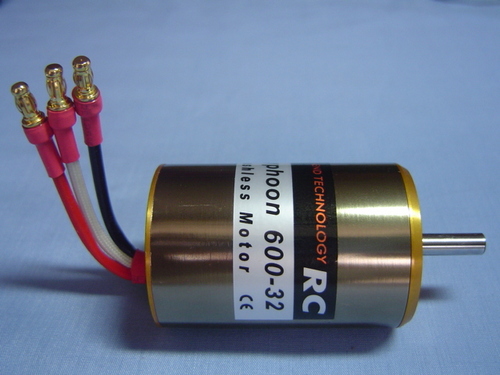

Home > Product List > Typhoon Brushless motor 600-32


Overview >>

Product Information:

For Sport aerobatics and sailplanes up to 2300 grams
Specially for EDF 90 mm jets

-Diameter : 36 mm/1.42 inch
-Length : 70 mm
-Shaft Dia. : 5 mm
-Rotor length: 30 mm
-Weight : 205 grams
-Poles : 6
-Internal resistance: 16
-No load current(lo) : 2.0
-No load KV : 2050
-Max Current: 70 A
-Max efficiency: 85%
-Power Nominal: 800 Watts
-Recommended Props:
8 x 5 for sports planes
10 x 6 for sailplanes


Please note: Use only the correct length screws. If screws enter the windings the motor will be scrap and not under warranty




Next:Typhoon Brushless motor 600-22
Previous:Typhoon Brushless motor 600-33
