Home > Product List > 9-ChannelFull-RangeDSM2ReceiverwithSatellite

Overview >>

1.9-Channel Full-Range DSM2 Receiver with Satellite
2.Best factory price
3. 1 warranty year

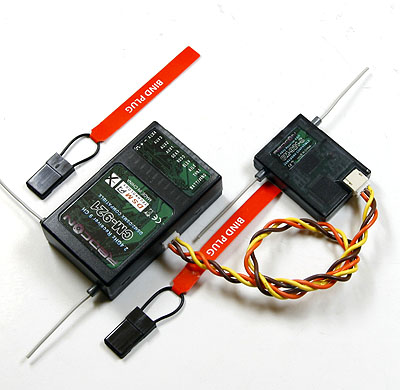

MICROLITE DSM2 Receiver & Satellite

Receiver Specifications

Type, 9-Channel Full-Range DSM2 Receiver

Modulation, DSM2

Band,  2.4GHz

Dimensions (WxLxH) 30 x 50 x 13mm

Weight  14g

Voltage Range 4-10v

Brown-Out Voltage  4.0v  (Always supply power  above this voltage)

Antenna Length Main RX  30mm (2)

Expected Range 800m-1000m (tested with JR DSX9)


Key Features

9 channels

Patent pending Model Match prevents flying a model using the wrong   model memory (feature does not work with module systems)

ServoSync (feature does not work with module systems)

Preset failsafe system


Red LED indicates number of hold

Compatibility (Spectrum and JR DSM2)DX6I,DX7,DX8,DSX7,DSX9

Working Voltage 4 to 10v

Wireless simulator interface(W.D.S.C),support REFLEXTR,G3,G4,G5 fly simulator

Binding Procedure


1. Put the binding harness into connector location marked BIND.  Next apply power to the receiver.  Both receiver and  Satellite LED's should illuminate.

2. To set fail-safe throttle and control surface positions, (minimum throttle with and all control surfaces set to neutral is suggested).  Press the bind button (LED will illuminate).  Turn on the transmitter.

3. Receiver LED will change from rapid flashing to slow flashing and a few seconds later when bind is accomplished the LED of both satellite and main receiver will illuminate solid. All fail-safes should be programed correctly now.

4. Remove binding harness from the BIND channel.  Restart the receiver by cycling it's power off and back on.  All channels should function properly now.  You may test fail-safe by holding sticks in corner, cycle transmitter off.  Surfaces and throttle should return to your preset fail-safe positions set in

General Notes

Only one bind procedure is required on a new receiver.  Repetitive binding provides no extra security.  Always remember to remove the binding harness after successful bind is completed.

Wireless simulator interface(W.D.S.C)

1.Main receiver and satellite must connect.

2. Receiver must bind with transmitter firist(AUX4 channel do not plug bingding harness)

3. AUX3 is the (W.D.S.C) channel, connect with simulator line

4. BIND channel and AUX4 channel plug the binding harness

5. Apply power to the receiver with usb line or battery

6. Power on transmitter ,both leds light,sumulator beginning

LED Indication

1. Solid illuminated Red LED is indicates good signal.  If flashing, 1 flash indicates 1 signal loss, 2 = 2 signal losses and etc

2. The Orange LED on main receiver should flash one time when power if first applied.  It will flash several times when binding harness is connected.  It should stay illuminated if main receiver losses signal but the Satellite is still working.

3. The Orange LED on the Satellite will flash one time when power is first applied.  It will flash several times during binding process.  It will stay illuminated when satellite is functioning normally.

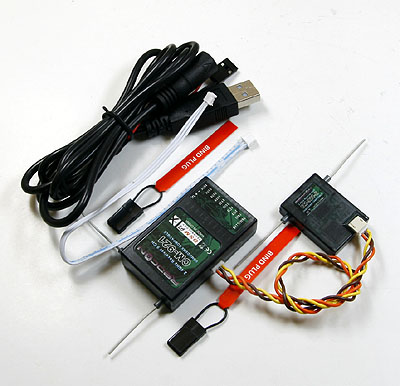

Package include Receiver 1 pcs,satellite 1 pcs,3P connect line 1pcs,USB Power line 1 pcs,Simulator connect line 1pcs, bind plug 2 pcs.

Previous:Corona Futaba 2.4ghz Receiver Compatible R8FA
