Home > Product List > Multi Qurttro 4B6 chargers

Overview >>

Detailed Product Description

With 4 independent output,3 cooling fan
you can charger 4 battery packs at the same time
no mattery what battery type you have

Quattro B6 Multi chargers / professional balance chargers/dischargers

Operating Voltage RangeDC 11-15 Volt
Power Source12V DC (car battery)/AC mains PSU(>2000Watts)(recommend PSU eFUEL PSU-30A)
Charge power50watts,current is regulated accordingly e.g. 11.1 v battery,charge current approx. 4.5A
e.g. 22.2v battery,charger current approx. 2.2A
Discharger power5watts,current is regulated accordingly
cell Count1-15NiCD/NiMH cells
1-6 Lipo/Lilon/LiFe cells
1-10 Lead-Acid cells(2V-20V)
Current Drain for balancing Lithium300mA
Charge Termination
Lead-Acid and LithiumAutomatic,negative Delta Peak method
Automatic,voltage-dependant,CC-CV process
Net weight1.09kg

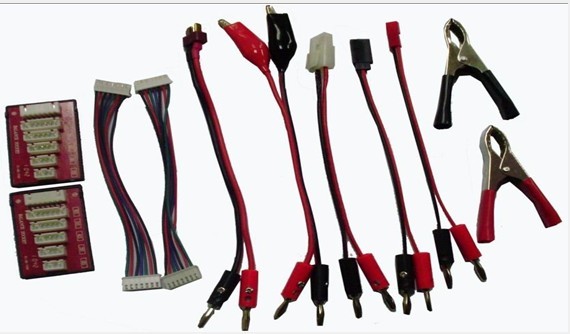

the set contains:
1.iMAX Quattro B6
2.Plu-in battery clamps
3.balance socket
4. Crocodile clip charging cable
5.Tamiya charging cable
6.18awg wire charging cable
7.Futaba rx charging cable
8.JST/BEC charging cable

Next:(50W/5A) ! HBC650 rc battery balance charger for hobbies
Previous:independent balance charger B3AC for 2-3 lipo cells (charging quickly) independent balance charger B3AC for 2-3 lipo cells (charging quickly)
