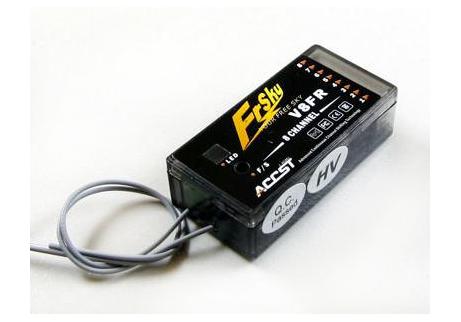

Home > Product List > 8ch 2.4ghz Frsky receiver V8FR-HV


Overview >>

1. Main features

◆ Advanced Continuous Channel Shifting Technology ( ACCST SYSTEM), robust frequency agility.
◆ Easy to bind and very fast link-up.
◆ Excellent reboot times.
◆ True antennas diversity.
◆ All channels are very effective and easy to set failsafe.
◆ Responsive and rock-solid in performance.
◆ Very Smooth servo movement.

2. Receiver specifications:

Operating Voltage Range: 4.0V-7.2V, 3.0V-16V (HV Version)

Operating Current: 30mA

Specified Range: 1.5km-2.5km

Resolution: 3072

Latency: 22ms

Number of Channels: 8CH

Dimensions: 49mmײ4.5mmױ5 mm

Weight: 14g

More details:http://www.frsky-rc.com/download.asp?id=21
