Home > Product List > Frsky 2.4Ghz JR MODULE ONLY


Overview >>
ACCST (Advanced Continuous Channel Shifting Technology) is our advanced technology. The ACCST 2.4GHz system shifts the frequency hundreds of times per second. It means there are no signal conflicts and interruptions.

1. Main features

◆ Advanced Continuous Channel Shifting Technology ( ACCST SYSTEM)
◆ Universal transmitter and receiver for all 4ch-8ch controllers.
◆ Quick and precise channels.
◆ Error-free Digital link.
◆ Low power consumption.
◆ Supports the multiple controls by a single controller.
◆ Extended operating range (1.2km).

2. FrSky V8 2.4GHz radio control system

If you are into JR and want to update your radio system to the 2.4GHz technology, the FrSky V8 system is the right choice.

3.1 FrSky V8 2.4GHz radio control system consists of:

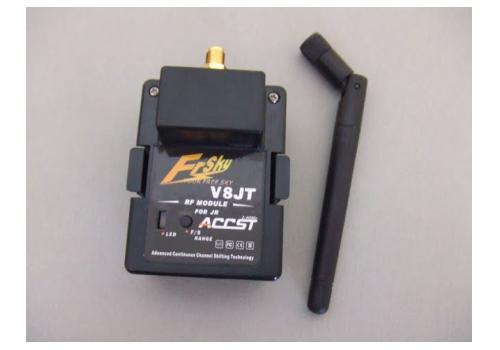

1× transmitter module (Model: V8JT)
1× receiver module(Model: V8FR)
1× transmitter antenna (Model: V8JTA)

3.2 Transmitter Module is compatible with the following transmitters:
JR:347/388/783/U8/PCM10/PCM10S/PCM10SX/ PCM10IIS/8103/J9303/MX-22/MX-24S/PX/9XII

3.3 Receiver specifications:
Operating Voltage Range: 4.8V-6V
Operating Current: 30mA
Specified Range: 1.2km
Resolution: 3072
Latency: 22ms
Number of Channels: 8CH
Dimensions: 60×37×21 mm

3.4 Transmitter module specifications:
Operating Voltage Range: 6.0V-13.0V
Operating Current: 50mA
Output Power: 60mW
Resolution: 10bit
Dimensions: 63.9X48.5X36.5mm

These are the manufacturer's specs of the new Frsky until we check them for ourselves:





Next:Frsky V8FT 2.4GHz Futaba MODULE ONLY
Previous:Frsky 2.4Ghz Conversion ( Hack ) Module
