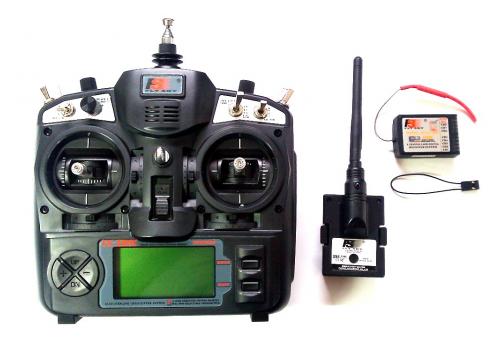

Home > Product List > FlySky FSTh9B 2.4G 9 Channel Transmitter with module


Overview >>

Please note: This unit is intended for use with hack modules only. However opening the unit and modifying it in any way invalidates any warranty.
It requires specialist electronic knowledge to operate and install and is not intended for the novice. A great buy for those wishing to experiment. Please be aware it is sold as described in Bruce Xjet's review (Click here) with all the imperfections as stated in that review and does not contain instuctions. Be sure to read the comments from other users.

Transmitter Specification

Product Name: Transmitter
Frequency Band: 2.4GHz
Modulation: GFSK
Supported Model Type: airplanegliderhelicopter
Transmission Mode: PPM
Channels Qtty: 9 channels
Resolution: 10 bit
Model Memories Qtty: 8 models
Indicator Type: LCD
Transmitter Set: transmitter8 channels receiver
Battery
Battery Type: 8 cells AA 12 V (option)
Dimension and Weight
Dimension: 220mm x 185mm x 110mm
Weight: 680 gr

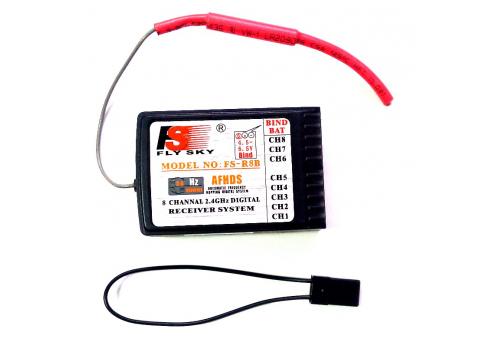

Receiver Specification

Receiver Model: AV-R8B
Frequency Band: 2.4GHz
Channels Qtty: 8 channels
Modulation: GFSK
Resolution: 10 bit
Operating Voltage: 4.5V...6.5V
Weight: 18 gr
Dimension: 52mm x 35mm x 15mm
