MICROLITE DSM2 /DSMX Receiver

Receiver Specifications:
◆ Type: 4-Channel Full-Range DSM2 Receiver
◆ Modulation: DSM2 /DSMX
◆ Band: 2.4GHz
◆ Dimensions (L xWx H):29x16x7mm◆ Weight: 3g◆ Voltage Range: 3.6-10v ◆ Antenna Length Main RX: 29mm
◆ 1.25Pitch JST servo connectors

Key Features
◆ 4 channels ◆ Preset failsafe system
◆ Compatibility (Spectrum and JR DSM2 and DSMX): DX6I,DX7,DX8,DSX7,DSX9 DSX11
◆ 1.25Pitch JST servo connectors

Binding Procedure
1. Put the binding harness into connector location marked BIND. Next apply power to the receiver. Both receiver and Satellite LED's should illuminate.
2. To set fail-safe throttle and control surface positions, (minimum throttle and all control surfaces set to neutral is suggested). Press and hold the bind button of transmitter (LED will illuminate), Turn on the transmitter.

3. Receiver LED will change from rapid flashing to slow flashing and a few seconds later when bind is accomplished the LED of both satellite and main receiver will illuminate solid. All fail-safes should be programed correctly now.

4. Remove binding harness from the BIND channel. Restart the receiver by cycling it power off and turn on. All channels should function properly now. You may test fail-safe by holding sticks in corner, cycle transmitter on and off. Surfaces and throttle should return to your preset fail-safe positions.
General Notes: This is not a Spektrum receiver, nor is it a copy of a Spektrum Receiver.
The Spektrum brand is a trademark of Horizon Hobbies USA.

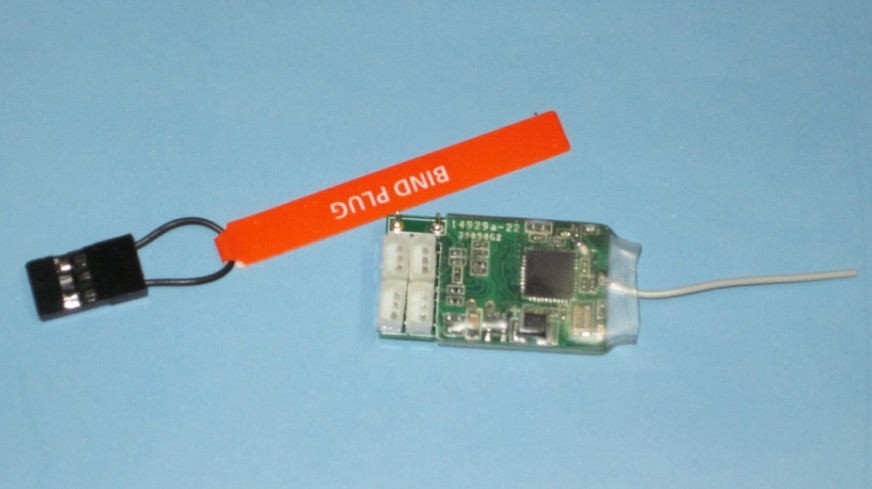

Package including：Receiver *1 pcs，， bind plug *1pcs
