Overview >>

Features:
- 12 Channel Full Function Radio Controlled (Aileron, Elevator, Throttle, Rudder, Retract, Airbrake Flaps, Mechanical Canopy Opening, Cockpit Ejection)

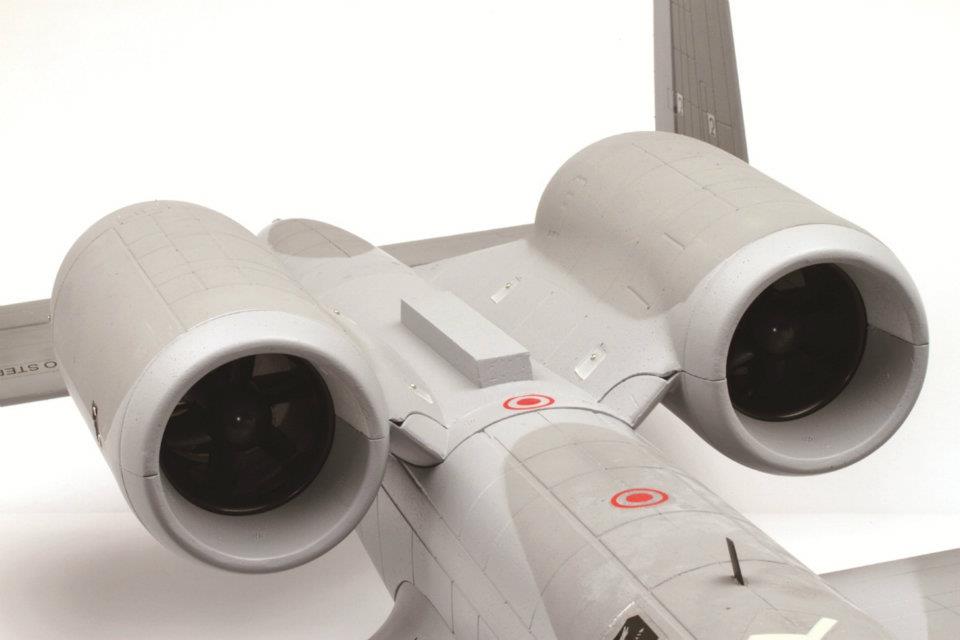

- Twin 70mm EDF
- Top of the line EDF jet in the market

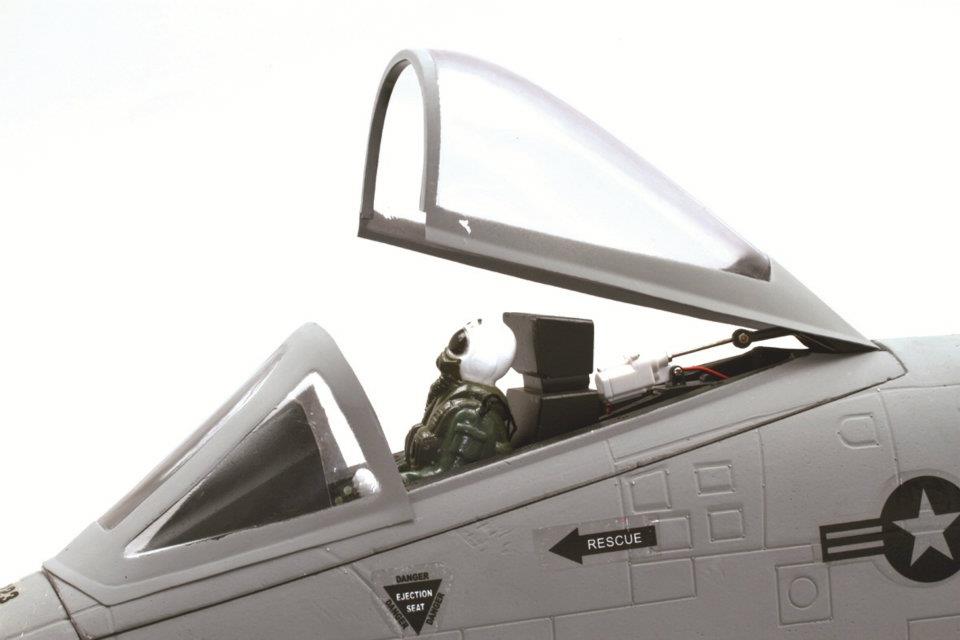

- Functional Mechanical Canopy Opening

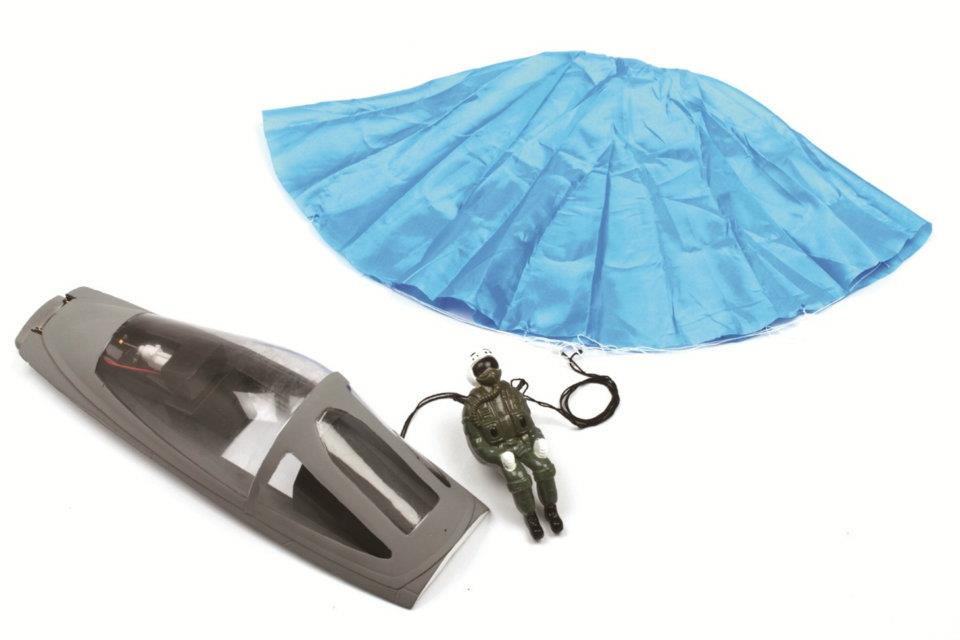

- Functional Cockpit Ejection
- Functional Airbrake Flaps

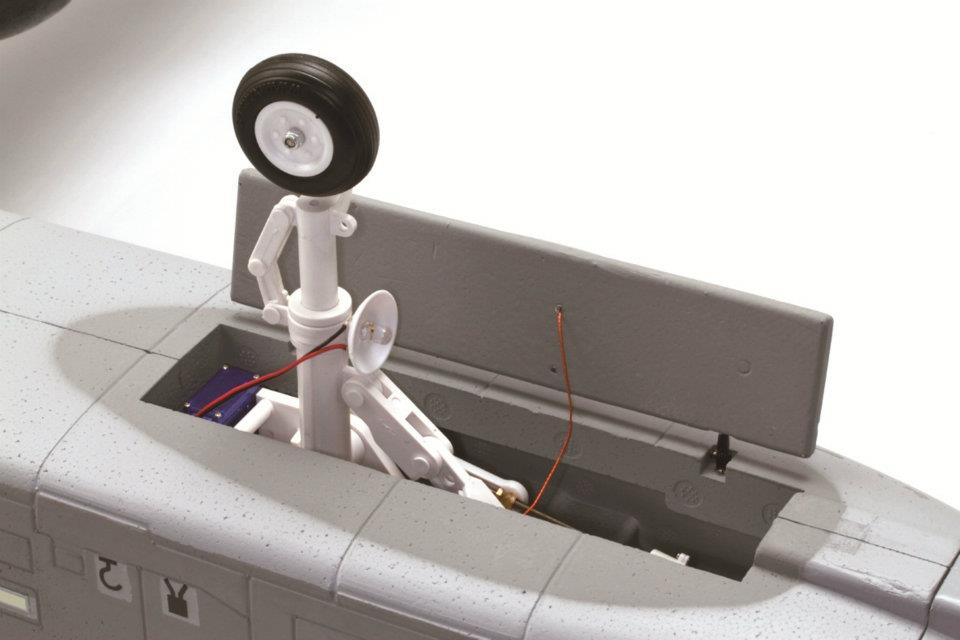

- Super scale, strong and durable threaded rotary shaft driven retract system (no more stripping servos)
- Scale pilot


Specification:
- Wingspan: 1500mm (59 in)
- Length: 1400mm (55.1 in)
- Flying Weight: 2450g (86.4 oz)
- EDF Diameter: 2x 70mm
- Retract: Threaded rotary shaft driven


Required:
- Servo: 10X 9g high speed micro servos/digital servos (Not included)
- Drive System: 2x Typhoon 2W-20 (4S lipo) or 2x Typhoon 2W-25 (6S lipo) (Not included)
- ESC: 2x 60A or up Brushless speed controller w/ 5A BEC (Not included)
- Battery: 22.2V 6S 3600mAh 25C Li-Po (Not included)
- Minimum Channel Transmitter and Receiver (Not included)


Pilots using their own radio systems will need to adjust Travel Adjust and or End Point Adjustment settings before operating.


Package Include:
- Airplane (90% assembled)
- Pilot Figure
- English manual
