Product Information

This charger is like a GT Power A606 with built-in power supply (Dual Power), and is able to charge, balance and discharge Li-ion, LiPo, LiFe (A123), NiCd and NiMH batteries.
Features:
Built-in power supply
Microprocessor controlled
Delta-peak sensitivity
Individual cell balancing
Li-ion, LiPo and LiFe capable
Ni-Cd and NiMH capable
Large range of charge currents
Store function, allows safe storage current
Time limit function
Input voltage monitoring. (Protects car batteries at the field)
Data storage (Store up to 5 packs in memory)
Battery break in and cycling.
Specifications:

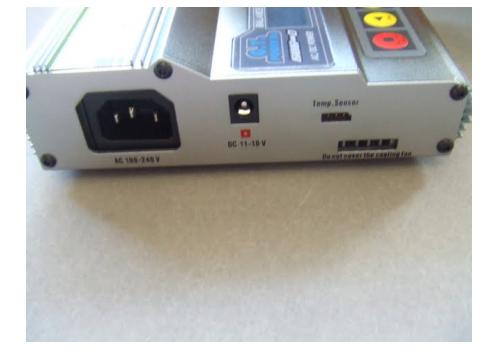

Operating voltage range: DC 11.0-18.0V/ AC 100-240V
Circuit power: Max 50W for charging
Max 5W for discharging
Charge current range: 0.1-6.0A
Discharge current range: 0.1-1.0A
Current drain for balancing Li-Po: 300mAh/cell
NiCd/NiMH battery cell count: 1-15 cells
Li-ion/Polymer battery cell count: 1-6 series
Pb battery voltage: 2V-20V
Net weight: 700g
Dimensions: 165�130�45mm

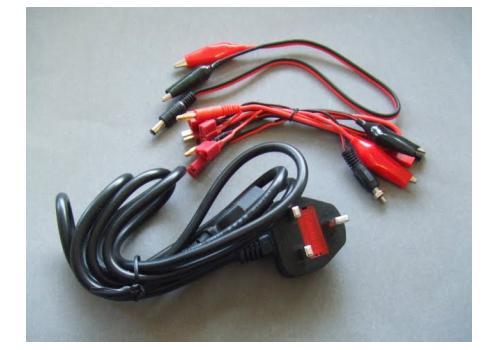

Includes NON Uk Power Lead & Multicharge Harness

�
