Home > Product List > Standard 15kg.cm Metal Gears Analog Servo FS5115M


Overview >>
Product Description

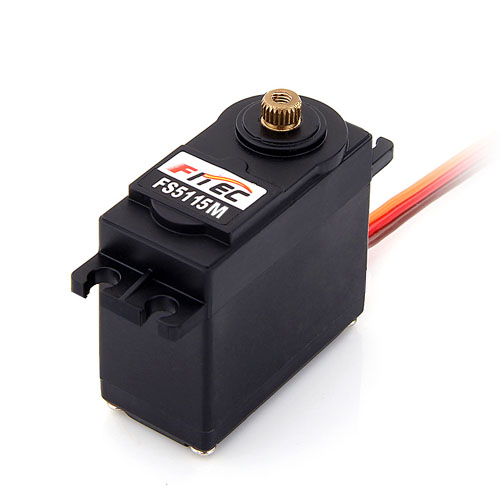

     Standard 15kg.cm Metal Gears Analog Servo FS5115M
Rohs Standard 15kg.cm Metal Gears Analog Servo FS5115M for robot servo
1)SKU:FS5115M
2)Dimensions:40.8 × 20.1 × 38 mm
3)Weight:56 g
4)Operating Speed :
 0.18sec/60degree (4.8V)
 0.16sec/60degree (6V)
5)Stall Torque :
 14kg.cm/194.8oz.in(4.8V)
 15.5kg.cm/215.6oz.in(6V)
6)Operating Voltage :4.8V~6V
7)Control System :Analog
8)Direction :CCW
9)Operating Angle :180degree
10)Required Pulse :500us-2500us
11)Bearing Type :2BB
12)Gear Type :Metal
13)Motor Type :Carbon
14)Connector Wire Length :30 cm
Specification:
  SIZE
(mm)
WEIGHT SPEED Stall Torque
SKU (LxWxH) G OZ sec/60° kg.cm
FS5115M 40.8x20.1x38mm 56 1.98 0.18(4.8V)
0.16(6V)
14(4.8V)
15.5(6V)


1.RC servo

2.Standard size 10kg torque

3.Operating Voltage: 5V

4.2BB

5-rc model servo

6-Standard plastics gears servo

7-Operating Voltage:4.8-6Volts

8-Interface: (like JR)

9-Application: Air plane,Car,boat

 Rohs Standard 15kg.cm Metal Gears Analog Servo FS5115M for robot servo



Next:Standard 13kg.cm Metal Gears Analog Servo FS5113M
Previous:3kg.cm 360 Degree Continuous Rotation Servo FS5103R
