Home > Product List > High Torque 0.15sec 21.3kg.cm HV Programmable Digital Servo Fi7622M


Overview >>

Feetech RC Airplane servo High Speed 22kg HV Digital Servo Fi7622M RC BoatWelcome to Wholesale!



 programmable servo Fi7622M

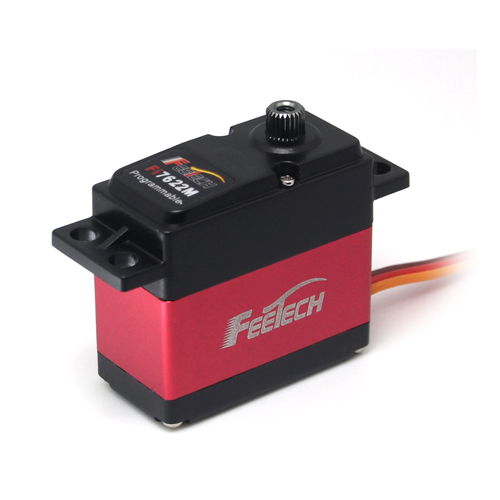

21.3kg.cm HV Programmable Digital Servo Fi7622M
1.high torque
2.Full Metal Case
3.excellent heat dissipation



High Torque 0.15sec 21.3kg.cm HV Programmable Digital Servo Fi7622M

Weight:57 g
Operating Speed :
0.17sec/60degree (6V)
0.15sec/60degree (7.4V)
Stall Torque :
18.9kg.cm/262.9oz.in(6V)
21.3kg.cm/296.3oz.in(7.4V)
Operating Voltage :4.8V~7.4V
Control System :Digital
Direction :CW
Operating Angle :180degree
Required Pulse :500us-2500us
Bearing Type :2BB
Gear Type :Metal
Motor Type :Coreless
Connector Wire Length :30 cm




FAQ



Programmer functions;
1. FAIL SAFE, On or Off
2. Direction of Rotation
3. Travel Speed
4. Servo Max Torque limit, and Punch
5. Center, End, and FAIL SAFE Point
6. Signal Pulse Set-Up
7. Strenth(Holding Power, Runing Power, Acceleration and Deceleration)
8. Dead Band Width
9. Resolution Setup
10.“Save and Open” File Options
11. Reset Factory Default Data
12.Read and Write Servo Data


Packaging & Shipping



Feetech rc High Torque 0.15sec 20kg.cm HV Programmable Digital Servo Fi7622M for For rc airplane/rc car/rc boat
