Dimensions:40 × 20 × 37.8 mm

Weight:73 g

Operating Speed :

0.17sec/60degree (6V)

0.15sec/60degree (7.4V)

Stall Torque :

18.9kg.cm/262.9oz.in(6V)

21.3kg.cm/296.3oz.in(7.4V)

Operating Voltage :6V~7.4V

Control System :Digital

Direction :CW

Operating Angle :180degree

Required Pulse :500us-2500us

Bearing Type :2BB

Gear Type :Metal

Motor Type :Coreless

Connector Wire Length :30 cm



Product Details

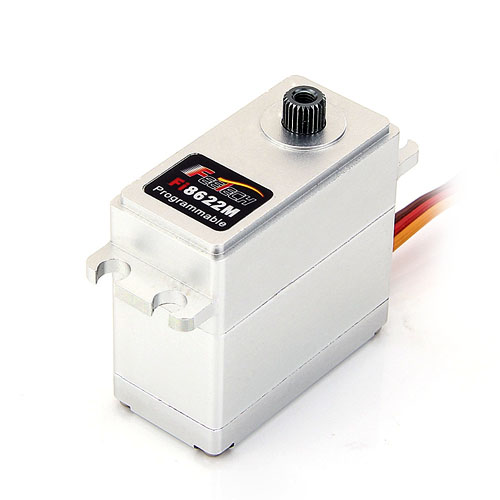

Fi8622M is FEETECH Programmable Digital Servo.

You need to use an USB interface (FE-SCPC-1) to program this servo. (For more information, please click here)

This servo is used in cars, boats, robots or where standard servos are used.

This servo can produce high-current draw from your batteries. If using NiMH or LiPo batteries, make sure they are capable of delivering approximately 2A for each servo.



Features:

Standard Size Two Ball Bearing High Torque Metal Case Programmable Digital Servo

Used 1 million times life potentiometer, high quality coreless motor.

Has the waterproof properties.

Can be programming angle of rotation to use USB interface by PC software.

Ideal for high-torque applications requiring a standard size servo

Universal connector fits Futaba, Hitec, JR, KO Propo.

One year warranty



Servo programmable function

1. FAIL SAFE, On or Off

2. Direction of Rotation

3. Travel Speed

4. Servo Max Torque limit and Punch

5. Center, End, and FAIL SAFE Point

6. Signal Pulse Set-Up

7. Stretch (Holding Power, Running Power, Acceleration and Deceleration)

8. Dead Band Width

9. Resolution Setup

10.“Save and Open” File Options

11. Reset Factory Default Data

12. Read and Write Servo Data

If you need to have special functions, please tell us. We can to customize for you.



Requires:

FE-SCPC-1(If you need to programming this servo)



Full Packaged

-Servo×1PCS

-Servo arm×1 bag

-Carton box

-GW 120g
