Home > Product List > Standard 0.15sec/60degree 18.5kg.cm Digital Servo FT5519M


Overview >>

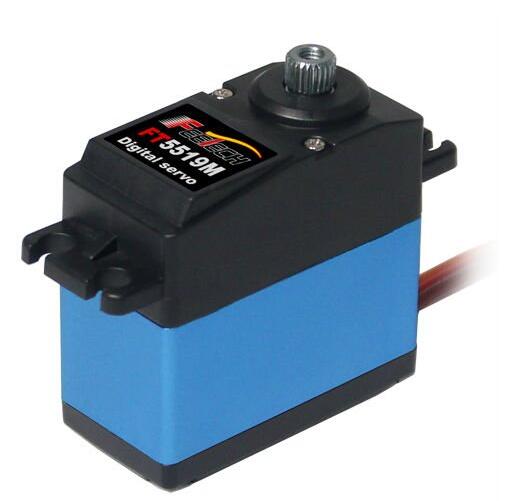

High quality FEETECH FT5519M waterproof digital metal gear servo for RC Air plane Car boat

  Use High grade 7075 aluminum alloy titanium gear from Taiwan

Size: 40.2*20.0*38.6mm

Weight: 56g(1.41oz)

 Speed: 0.14sec/60°(7.4V)

        0.12sec/60°(8.4V)

 Torque: 14.8kg.cm/205.5 oz.in(7.4V)

              16.9kg.cm/234.7 oz.in(8.4V)

Application:Air plane,Car,boat

Features

-Standard digital Titanium gears servo ,2BB

-Coreless motor,Aluminium middle hull

-Waterproof

-Operating Voltage: 2-cell Li-Po power

-Dead band width: 2usc

-Interface: (like JR)

-Wire length: 30cm



Notice:

-Refer to the figure when installing the servo accessories. Caution: For engine powered
airplanes, helicopter, vehicle model, must use rubber shock pad to fix.
-Please choose correct model for your application.
Caution: Torque over-loaded will damage the servo’s mechanism.
-The products use coreless motor; please choose the right power voltage of
servo according the specification. Please pay more attention that it may affect unnormal
working or damage of servo if using the servo oversteps the normal range of voltage.
-Keep the servo clean and away from dust, corrosive gas and humid air.
-Our company keeps the right of amendment, if there are some changes of parameter
and appearance, without notice.



 Feetech Standard 18.5kg Digital Servo For Rc Car Buggy Rc Racing 1/8 FT5519MFeetech Standard 18.5kg Digital Servo For Rc Car Buggy Rc Racing 1/8 FT5519M
