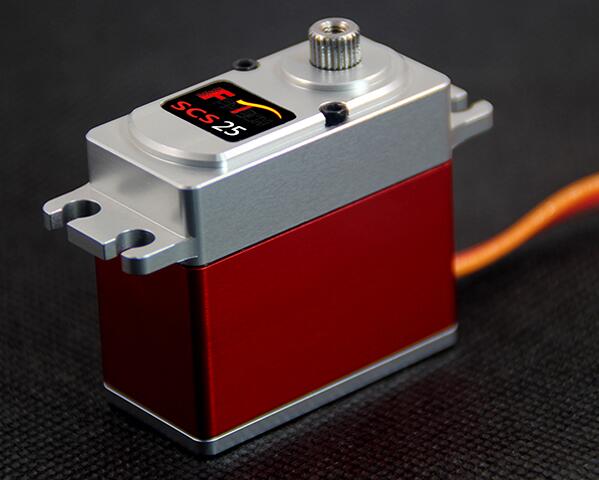

SCS25Serial Bus Servo 23kg High-precision Coreless All Metal Robot Servo

Description

Minimalist wiring / occupied port less / more precise control / feedback position, temperature, load, speed and voltage data / support TTL/485 protocol / interface / protocol development mode (multi support mode and servo motor mode) / double link easy wiring / bus connection group of chrysanthemum theory can be up to 253 ID / high precision metal gear group / baud rate up to 1M. Customizable magnetic coding / high precision (4096 bit)





 1 Product demo video link address:

Http://v.ku6.com/show/Fnh77yLQKVw2aSgkOmltZg... HTML? From=my
2 This product needs to use with TTLinker-mini to connect with Arduino control board /STM32 control panel.
TTLinker-mini purchase link:
https://www.alibaba.com/product-detail/TTLinker-For-arduino-signal-conversion-board_60370504430.html?spm=a2700.7724838.0.0.X57p8X
3 The control code and the library please contact customer  service after purchase.
4 More detailed product specifications may contact customer service to inform the product for the purpose.
5 We can customize different specifications of high-quality serial bus servo. Welcome Contact us if any question!

Features:

Standard Size Two Ball Bearing High Torque Brushless Digital Servo

Used 1 million times life potentiometer, high quality brushless motor.

Used high quality anti-interferencecable(Like S-Bus Cable)

Have the waterproof properties.

Ideal for high torque applications requiring a standard size servo

Universal connector fits Futaba, Hitec, JR, KO Propo.

One year warranty

-Standard digital Titanium gears servo 2BB

-Blushless motor, Aluminium middle hull

-Waterproof

-Operating Voltage: 4.8~6V

-Dead band width: 2usc

-Interface: (like JR)

-Wire length: 30cm



Specification



Dead zone: 1 s

Frequency: 1520 Mu s / 330hz

Maximum pulse width can be supported by 0.5-2.5

Motor: a sense of brushless motor

Speed (6.0V): 0.14sec/60
Speed (7.4V): 0.12sec/60

Torque (6.0V): 30kg.cm (417.35oz/in)

Torque (7.4V): 35kg-cm (486.91 oz/in)

Size: 40.5X20.5X36mm/1.59X0.80X1.43in

Weight: 72g (2.54oz)

Line length: JR 300 mm

Bearing: 2BB

Locked rotor current (6V) 2.6A

Locked rotor current (7.4V) 3.0A

Operating current (6V) 450MA

Operating current (7.4V) 620MA

Operating current is the current in the case of constant speed.

Quiescent current (26MA)



Pictures:





Application:
