Please note that due to customer requests we no longer supply these fans with a shaft. The price has been deducted from the fan and you can now choose your own to match with the motor of your choice.

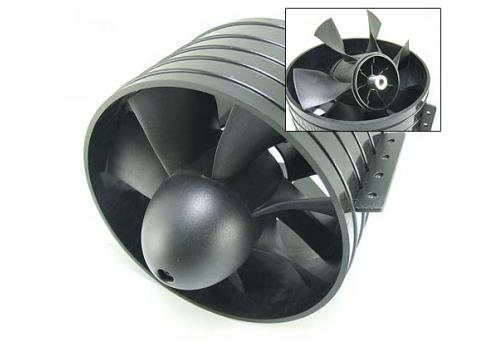

EDF Ducted Fan Unit  7 Blade Φ5”/Φ127×H125mm

Model: HY003-00113-7B
Blade Diameter: 127mm / 5inch
Outer Case Diameter: 135mm
Wall Thickness: 3mm
EDF Length: 98mm
Motor Mount Holes: (Adjustable, from 22~37mm)
Blade Type: 7
This fan will take up to a 49mm diameter motor.

Made from high strength reinforced plastic.
Spare propellers available.
Designed for a range of electric motors around the 540 size.

Recomended Motor: 45-70  Turn (22.2v)
Rpm: 1,000kv
Power: 1500~5000g Thrust

See below for choice of shaft (not included)

EDF Model	2mm Shaft	2.3mm Shaft	3mm Shaft	3.17mm Shaft	4mm Shaft	5mm Shaft	6mm Shaft
HY003-00101-3B	HY003-00101-3S (2mm)
HY003-00102-6B	HY003-00102-6S (2mm)
HY003-00103-6B		003-00103-6S (2mm)		HY003-00103-6S(3.17mm)
HY003-00104-6B		HY003-00104-6S (2.3mm)		3.17mm / 003-00104-6S (3.17mm)
HY003-00105-5B			3mm /003-00105B (3mm)	003-00105-5B (3.17mm)		003-00105-5S (3.17mm)
HY003-00106-5B		2.3mm / 003-00106B (2.3mm)		003-00106B (3.17mm)	003-00106B (4mm)
HY003-00107-6B		2.3mm / 003-00107 / 108 (2.3mm)				003-00107 (5mm)
HY003-00107-7B		2.3mm / 003-00107 / 108 (2.3mm)				003-00107 (5mm)
HY003-00108-7B		003-00107 / 108 (2.3mm)	HY003-00108-7S(3mm)
HY003-00109-7B						HY003-00109-7S(5mm)
HY003-00110-7B						003-0011X-7S (5mm)	003-0011X-7S (6mm)
HY003-00111-7B						003-0011X-7S (5mm)	003-0011X-7S (6mm)
HY003-00112-7B						003-0011X-7S (5mm)	003-0011X-7S (6mm)
HY003-00113-7B						003-0011X-7S (5mm)	003-0011X-7S (6mm)
