Please note that due to customer requests we no longer supply these fans with a shaft. The price has been deducted from the fan and you can now choose your own to match with the motor of your choice.

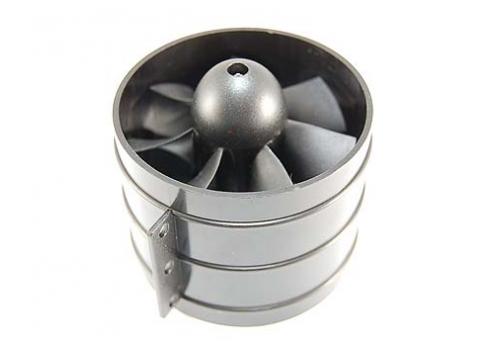

EDF Ducted Fan Unit 7Blade Φ2.5”/Φ64×H75mm HY003-00108-7B

Model: HY003-00108-7B
Blade Diameter: 64mm / 2.5inch
Blade Type: 7
Made from high strength reinforced plastic.
Spare propellers available.
Recomended Motor: 24-45 6Turn (11.1~14.8v)
ESC: 25A
Rpm: 3,750kv
Power: 400~1500g Thrust
This fan will take up to a 28mm diameter motor.

Recommended Setup

BM2846 3500kv 4S1P
BM2846 3900/4100kv 3S1P


See below for choice of shaft (not included)

EDF Model	2mm Shaft	2.3mm Shaft	3mm Shaft	3.17mm Shaft	4mm Shaft	5mm Shaft	6mm Shaft
HY003-00101-3B	HY003-00101-3S (2mm)
HY003-00102-6B	HY003-00102-6S (2mm)
HY003-00103-6B		003-00103-6S (2mm)		HY003-00103-6S(3.17mm)
HY003-00104-6B		HY003-00104-6S (2.3mm)		3.17mm / 003-00104-6S (3.17mm)
HY003-00105-5B			3mm /003-00105B (3mm)	003-00105-5B (3.17mm)		003-00105-5S (3.17mm)
HY003-00106-5B		2.3mm / 003-00106B (2.3mm)		003-00106B (3.17mm)	003-00106B (4mm)
HY003-00107-6B		2.3mm / 003-00107 / 108 (2.3mm)				003-00107 (5mm)
HY003-00107-7B		2.3mm / 003-00107 / 108 (2.3mm)				003-00107 (5mm)
HY003-00108-7B		003-00107 / 108 (2.3mm)	HY003-00108-7S(3mm)
HY003-00109-7B						HY003-00109-7S(5mm)
HY003-00110-7B						003-0011X-7S (5mm)	003-0011X-7S (6mm)
HY003-00111-7B						003-0011X-7S (5mm)	003-0011X-7S (6mm)
HY003-00112-7B						003-0011X-7S (5mm)	003-0011X-7S (6mm)
HY003-00113-7B						003-0011X-7S (5mm)	003-0011X-7S (6mm)
