Please note that due to customer requests we no longer supply these fans with a shaft. The price has been deducted from the fan and you can now choose your own to match with the motor of your choice.

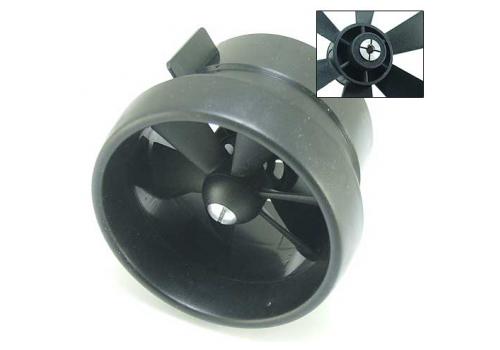

5 Bladed EDF Ducted Fan Unit 2.68” / 68×H58mm

Model: HY003-00105-5B
EDF Ducted Fan Unit 5Blade 2.68inch 68mm
Blade Diameter: 68mm / 2.68inch
Blade Type: 5
Made from high strength reinforced plastic.
Spare propellers available.
Recomended Motor: 28-47 9Turn (7.4~14.8v)
ESC: 40A
Rpm: 4,000kv
Power: 750~950g Thrust
This fan will take up to a 29mm diameter motor.

Recommended Setup

Black Mantis BM2846 3200kv 4S1P
Black Mantis BM2846 3900kv 3S1P

See below for choice of shaft (not included)

EDF Model	2mm Shaft	2.3mm Shaft	3mm Shaft	3.17mm Shaft	4mm Shaft	5mm Shaft	6mm Shaft
HY003-00101-3B	HY003-00101-3S (2mm)
HY003-00102-6B	HY003-00102-6S (2mm)
HY003-00103-6B		003-00103-6S (2mm)		HY003-00103-6S(3.17mm)
HY003-00104-6B		HY003-00104-6S (2.3mm)		3.17mm / 003-00104-6S (3.17mm)
HY003-00105-5B			3mm /003-00105B (3mm)	003-00105-5B (3.17mm)		003-00105-5S (3.17mm)
HY003-00106-5B		2.3mm / 003-00106B (2.3mm)		003-00106B (3.17mm)	003-00106B (4mm)
HY003-00107-6B		2.3mm / 003-00107 / 108 (2.3mm)				003-00107 (5mm)
HY003-00107-7B		2.3mm / 003-00107 / 108 (2.3mm)				003-00107 (5mm)
HY003-00108-7B		003-00107 / 108 (2.3mm)	HY003-00108-7S(3mm)
HY003-00109-7B						HY003-00109-7S(5mm)
HY003-00110-7B						003-0011X-7S (5mm)	003-0011X-7S (6mm)
HY003-00111-7B						003-0011X-7S (5mm)	003-0011X-7S (6mm)
HY003-00112-7B						003-0011X-7S (5mm)	003-0011X-7S (6mm)
HY003-00113-7B						003-0011X-7S (5mm)	003-0011X-7S (6mm)
