2.4Ghz 8ch Corona Receiver (FHSS)

Specification

Receiver module:

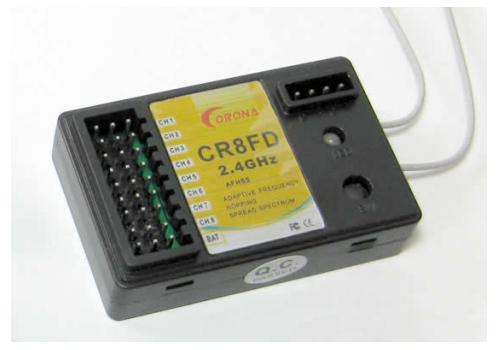

A) CR8FD (8 channel)
Compatible with any Corona two-way transmitter module.
More receiver modules are currently under development.
Features:
AFHSS technology (Adaptive Frequency Hopping Spread Spectrum) provides high interference rejection even in an interference rich environment .
� Quick and precise response.
� Low power consumption.
� Fail safe is available on the receiver.
� Easy range check with alarm beep.
� Dual antennas diversity.
� Packet error rate of receiver delivery to Transmitter.
� Good compatibility between all two-way Transmitter modules and receiver's
� Alarm on events of receiver (poor reception or low battery voltage Note � this requires an extension display module / alarm unit)

� Extended Features (requires an transmitter based extension module �dashboard� to display the communication data from the receiver)
� Voltage / Amp draw / temperature status of the model delivery to Transmitter display module.
� RPM of the motor on the model delivery to Transmitter.
� GPS data (include Longitude, Latitude, height,speed, etc) on the model.
Electrical Specifications:
Transmitter module:
Operation Voltage Range:6~13V
Operating Current:<=50mA@10V
RF output power: <=100mW

Receiver module:
Operation Voltage Range:4.8~6V
Operating Current:<=50mA@5V
Sensitivity: -100dBm
Resolution:10bit
