Home > Product List > 15.5kg.cm High Speed HV Metal Case Digital Car Servo Fi8615M


Overview >>

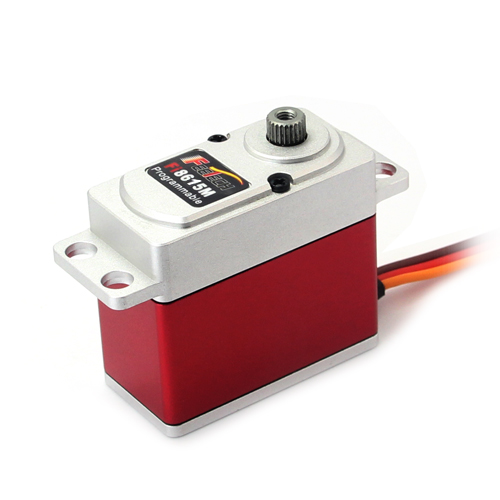

Fi8615M High quality 15 KG  High Speed programmable HV Metal Case Digital Programmable Servo

1.car servo
2.digital Coreless motor
3.high torque
4.good performance



  Use High grade 7075 aluminum alloy titanium gear from Taiwan

Features

Size: 40.0*20.0*37.5 mm

Weight: 73g(2.58oz)

Speed: 0.12sec/60°(6V)

             0.09sec/60°(7.4V)

Torque: 10.2kg.cm/141. oz.in(6V)

           12.8kg.cm/178.1 oz.in( 7.4V )

Application:1/10 Car, Boat, Robot



-Standard digital metal gears servo,2BB

-Corless moter

-All Aluminum alloy case

-Waterproof

-Operating Voltage:6~7.4Volts

-Interface: (like JR)

-Wire length: 30cm

Servo programmable function

1. FAIL SAFE, On or Off

2. Direction of Rotation

3. Travel Speed

4. Servo Max Torque limit, and Punch

5. Center, End, and FAIL SAFE Point

6. Signal Pulse Set-Up

7. Stretch (Holding Power, Running Power, Acceleration and Deceleration)

8. Dead Band Width

9. Resolution Setup

10.“Save and Open” File Options

11. Reset Factory Default Data

12.Read and Write Servo Data



  The feetech Fi8615M is the best overall digital servo when you also consider the price. It would be a good deal but this servo is digital and is the best bang for the buck. Use this servo right out of the box and you will be amazed at how smooth and powerful it is. Take it a step further and purchase the hand held programmer and then the doors really open up as to what this servo can do. The combination of torque, speed, price and extreme holding power make it a favorite among top robot builders, pilots, and drivers. Special alloy gears called “Alumite” offer tremedous strength yet are lightweight as well.  We offer the Fi8612M servo in several configurations, 90° stock rotation, 180° modified rotation, continuous rotation (potentiometer is left outside the servo case) and reverse rotation.







Packaging & Shipping





Full Packaged

-Servo×1PCS

-Servo arm×1 bag

-GW: 124g

15 kg Torque High Speed HV Metal Case Digital Programmable Servo Fi8615M




Next:High Torque 0.15sec 21.3kg.cm HV Programmable Digital Servo Fi7622M
Previous:23kg.cm High Torque HV Metal Case Digital Car Servo Fi8625M
