Please note that due to customer requests we no longer supply these fans with a shaft. The price has been deducted from the fan and you can now choose your own to match with the motor of your choice.

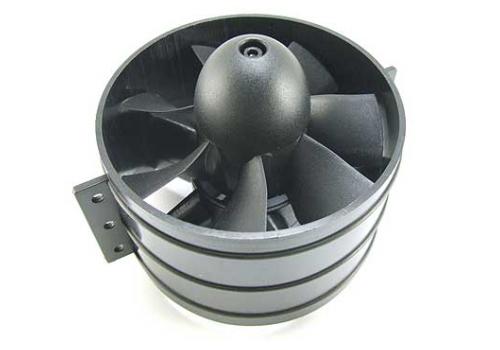

EDF Ducted Fan Unit 7 Blade 4.5”/115×H113mm

Model: HY003-00112-7B
Blade Diameter: 4.5inch / 115mm
Outer Case Diameter: 122mm
Wall Thickness: 2mm
EDF Length: 113mm
Blade Type: 7
Made from high strength reinforced plastic.
Spare propellers available.
This fan will take up to a 49mm diameter motor.

Recomended Motor: 36-50 4 Turn (22.2v)
Rpm: 1,000kv
Power: 1500~4000g Thrust

Recommended Setup

Black Mantis BM3560 1500kv

Additional information regarding this EDF:

New to the Dark Art of EDF? A good overview and place to start would be Nigel Hawes' EDF Guide Part I and Part II

More Relevant Forum Posts:

Please see the Giantcod Set Up Guide for information on selecting the right motor,esc and lipo. Remember for EDFs you will need to double the watts/pound rule for a prop.
For Q+A on motors in the forum click here - All Motor posts.
See this post for details on How overpropping can kill your motor (and after esc and lipo...)
To understand the role of RPM/V in motor selection choose The KV Guide
Inrunner or Outrunner - a Rough Guide by Andy2No.
Choosing a motor / prop combination using PeakEff for an online tool that can help in motor and prop selection.
