Please note that due to customer requests we no longer supply these fans with a shaft. The price has been deducted from the fan and you can now choose your own to match with the motor of your choice.

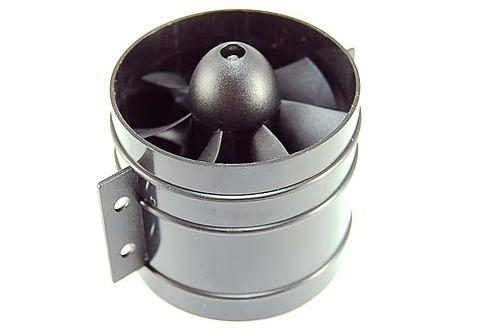

EDF Ducted Fan Unit 7Blade Φ2”/Φ51×H60mm

Model: HY003-00107-7B
Blade Diameter: 51mm / 2inch
Blade Type: 7
Made from high strength reinforced plastic.
Spare propellers available.
Recomended Motor: 24-33 8Turn (7.4~11.1v)
ESC: 20A
Rpm: 4,500kv
Power: 300~1000g Thrust
This fan will take up to a 24mm diameter motor.



See below for choice of shaft (not included)

EDF Model	2mm Shaft	2.3mm Shaft	3mm Shaft	3.17mm Shaft	4mm Shaft	5mm Shaft	6mm Shaft
HY003-00101-3B	HY003-00101-3S (2mm)	�	�	�	�	�	�
HY003-00102-6B	HY003-00102-6S (2mm)	�	�	�	�	�	�
HY003-00103-6B	�	003-00103-6S (2mm)	�	HY003-00103-6S(3.17mm)	�	�	�
HY003-00104-6B	�	HY003-00104-6S (2.3mm)	�	3.17mm / 003-00104-6S (3.17mm)	�	�	�
HY003-00105-5B	�	�	3mm /003-00105B (3mm)	003-00105-5B (3.17mm)	�	003-00105-5S (3.17mm)	�
HY003-00106-5B	�	2.3mm / 003-00106B (2.3mm)	�	003-00106B (3.17mm)	003-00106B (4mm)	�	�
HY003-00107-6B	�	2.3mm / 003-00107 / 108 (2.3mm)	�	�	�	003-00107 (5mm)	�
HY003-00107-7B	�	2.3mm / 003-00107 / 108 (2.3mm)	�	�	�	003-00107 (5mm)	�
HY003-00108-7B	�	003-00107 / 108 (2.3mm)	HY003-00108-7S(3mm)	�	�	�	�
HY003-00109-7B	�	�	�	�	�	HY003-00109-7S(5mm)	�
HY003-00110-7B	�	�	�	�	�	003-0011X-7S (5mm)	003-0011X-7S (6mm)
HY003-00111-7B	�	�	�	�	�	003-0011X-7S (5mm)	003-0011X-7S (6mm)
HY003-00112-7B	�	�	�	�	�	003-0011X-7S (5mm)	003-0011X-7S (6mm)
HY003-00113-7B	�	�	�	�	�	003-0011X-7S (5mm)	003-0011X-7S (6mm)
