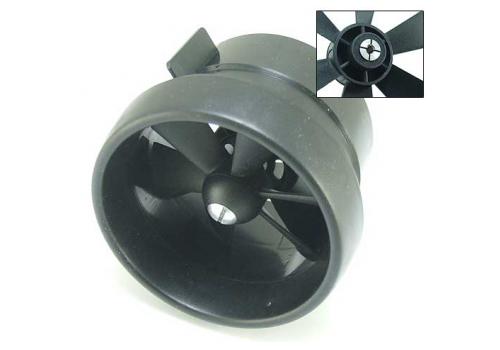

5 Bladed EDF Ducted Fan Unit 3.50” / 89xH58mm

Please note that due to customer requests we no longer supply these fans with a shaft. The price has been deducted from the fan and you can now choose your own to match with the motor of your choice.

5 Bladed EDF Ducted Fan Unit Φ3.50” / Φ89×H58mm

Model: HY003-00106-5B
Blade Dia: 89mm
Blade No: 5
Made from high strength reinforced plastic.
Motor diameter: 28mm
Weight: 68g
Length: 58mm
Suitable for 500 + Watts.

Recommended Setup

Black Mantis BM2846 3200kv 4S1P
Black Mantis BM2846 3900kv 3S1P

See below for choice of shaft (not included)

EDF Model	2mm Shaft	2.3mm Shaft	3mm Shaft	3.17mm Shaft	4mm Shaft	5mm Shaft	6mm Shaft
HY003-00101-3B	HY003-00101-3S (2mm)
HY003-00102-6B	HY003-00102-6S (2mm)
HY003-00103-6B		003-00103-6S (2mm)		HY003-00103-6S(3.17mm)
HY003-00104-6B		HY003-00104-6S (2.3mm)		3.17mm / 003-00104-6S (3.17mm)
HY003-00105-5B			3mm /003-00105B (3mm)	003-00105-5B (3.17mm)		003-00105-5S (3.17mm)
HY003-00106-5B		2.3mm / 003-00106B (2.3mm)		003-00106B (3.17mm)	003-00106B (4mm)
HY003-00107-6B		2.3mm / 003-00107 / 108 (2.3mm)				003-00107 (5mm)
HY003-00107-7B		2.3mm / 003-00107 / 108 (2.3mm)				003-00107 (5mm)
HY003-00108-7B		003-00107 / 108 (2.3mm)	HY003-00108-7S(3mm)
HY003-00109-7B						HY003-00109-7S(5mm)
HY003-00110-7B						003-0011X-7S (5mm)	003-0011X-7S (6mm)
HY003-00111-7B						003-0011X-7S (5mm)	003-0011X-7S (6mm)
HY003-00112-7B						003-0011X-7S (5mm)	003-0011X-7S (6mm)
HY003-00113-7B						003-0011X-7S (5mm)	003-0011X-7S (6mm)

Additional information regarding this EDF:

New to the Dark Art of EDF? A good overview and place to start would be Nigel Hawes' EDF Guide Part I and Part II

More Relevant Forum Posts:

Please see the Giantcod Set Up Guide for information on selecting the right motor,esc and lipo. Remember for EDFs you will need to double the watts/pound rule for a prop.
For Q+A on motors in the forum click here - All Motor posts.
See this post for details on How overpropping can kill your motor (and after esc and lipo...)
To understand the role of RPM/V in motor selection choose The KV Guide
Inrunner or Outrunner - a Rough Guide by Andy2No.
Choosing a motor / prop combination using PeakEff for an online tool that can help in motor and prop selection.
